Large Scale Economical Solar Ground Mounting System Pile Driven Solar Racking Rails
Key Benefits:
1. Sturdy, reliable structure with proven quality; easy and quick installation;
2. Single H-beam pole, reducing overall material & labor costs; professional design lower costs and customized;
3. Fewer ground penetration, ideal for MW projects and rolling ground; 10 years quality warranty and 25 years design life;
4. Less steps, fewer parts, suitable for various kinds of ground and roof conditions;
5. Cost effective with concise design saves materials a lot;
6. Quick delivery.
Q1: What kinds of data do you need to design the solar mounting system?
A: Please find the information as below:
Installation site: Tilt angle:
Snow load: Wild speed: ___ m/s
Panel power: Panel dimension:()lengh x () width x () thickness
Panel quanatity: Panel layout:() row x () columns x ()
Ground clearance:
Foundation types:(screw pile or concrete block):
Roof type:
Q2: Do you supply sample for free?
A: We only proveide the rail profile for free,the freight are needed to paid by clients.
Q3: What's the payments in your company?
A: Generally,we accept 50%T/T at sight,or if you have any other requirments,we would like to discuss with you.
Technical Data:
| Application: | Ground |
| Tilt angle: | 5-30 degrees |
| Max. height of upper edge: | 1000mm |
| Max. wind speed: | 40m/s |
| PV module: | Framed |
| Orientation: | Landscape & Portrait |
| Material: | Anodized aluminum (rail, clamp); |
| Hot-dip galvanized steel Q235B (H-beam pole); |
| SUS304 (bolts) |
| Warranty: | 10 years |
Product Tags:
|
|

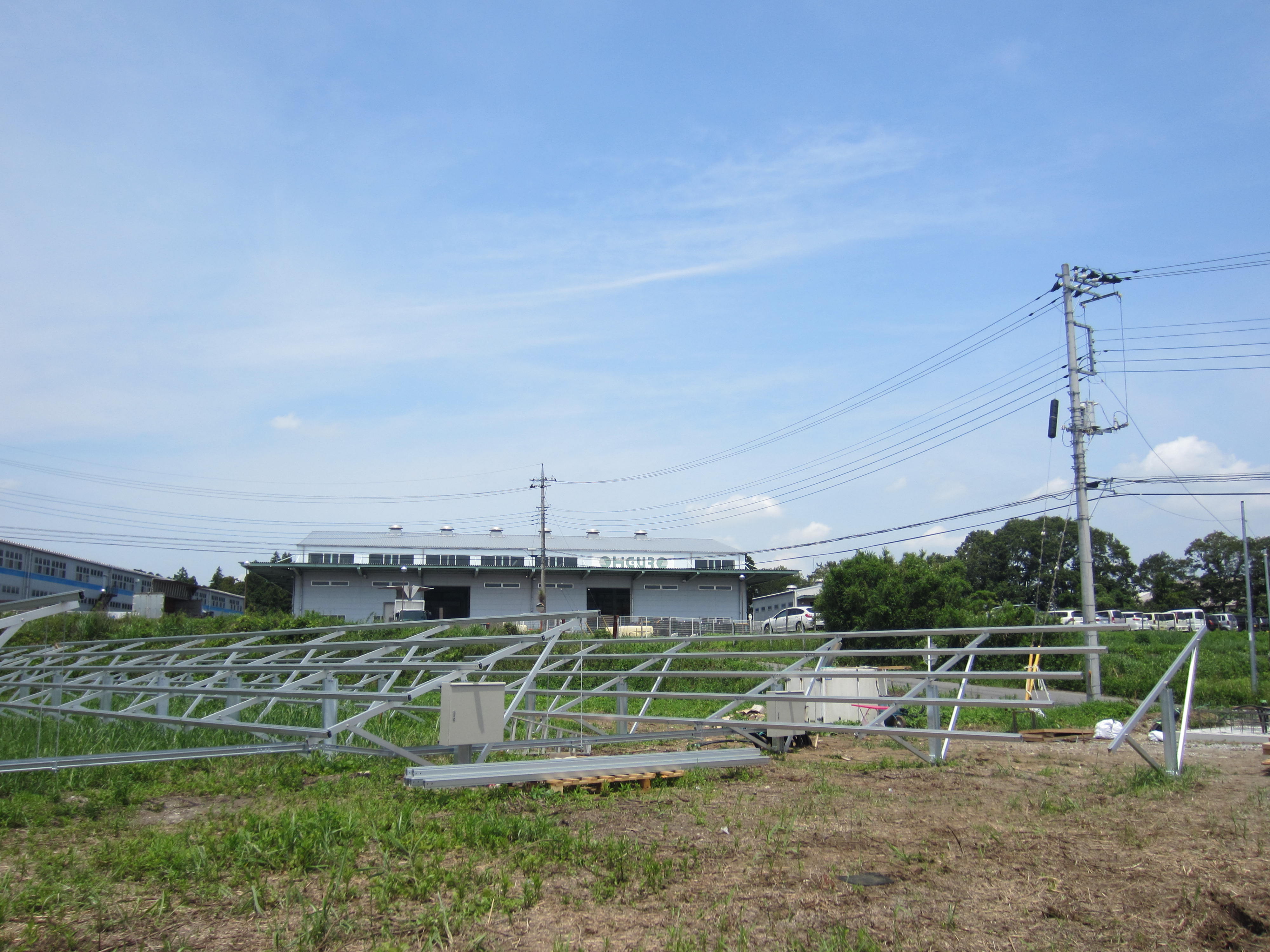

Large Scale Economical Solar Ground Mount System Pile Driven Solar Racking Rails Images
|
