Single Pole Structure AL 6005 Solar Ground Mount System

Name: Single Pole Structure AL 6005 Solar Ground Mount System
Brand: NACYC ENERGY
Price: 1 USD

Buy cheap Single Pole Structure AL 6005 Solar Ground Mount System product

Brand Name : NACYC ENERGY

Model Number : Metis SP III

Certification : SGS,ISO9001

Place of Origin : Fujian, China

MOQ : 50 Kilowatts

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 10 Megawatts per month

Delivery Time : Shipped in 15 days after payment

Packaging Details : 250KW/40ft, 100KW/20ft

Material : Aluminum AL 6005-T5

Color : Silver

Wind load : 40m/s

Application : Ground

Tilt Angle : Below 60 degrees

Module Orientation : Landscape &Portrait

Foundation : Conctete or ram pile

Surface Treatment : Anodized

Contact Now

Aluminum AL 6005 Single Pole Structure Solar Ground Mount System Framed Modules

Feature

Designed for concrete or ram pile mounting, fast installation.

Lower cost, universal components, light-weighted.

Product parameters

Installation Site:	Ground
Wind Load:	40m/s
PV Module:	Framed
Module Orientation:	Landscape & Portrait
Installation Angle :	Below 60 degrees
Material:	Andoized Aluminum (rails, clamps) Q235 steel (ram pile), SUS304 (bolts&nuts)
Foundation	Concrete or ram pile
Color	Silver
Warranty:	10 years

Product advantages

Excellent compatibility.designed as a universal racking system, framed modules from all the popular manufactures can be used.

Excellent adaptability . the angle of the rails has been designed to maximum the harvest of solar power according to your local latitude.

Maximum lifespan. all components are made of quality extruded aluminum and stainless steel.the high corrosion resistance guarantees the maximum possible lifespan and is also completely recyclable.

Single Pole Structure AL 6005 Solar Ground Mount System

Product Tags:

AL 6005 Solar Ground Mount System

Q235 Steel Solar Ground Mount System

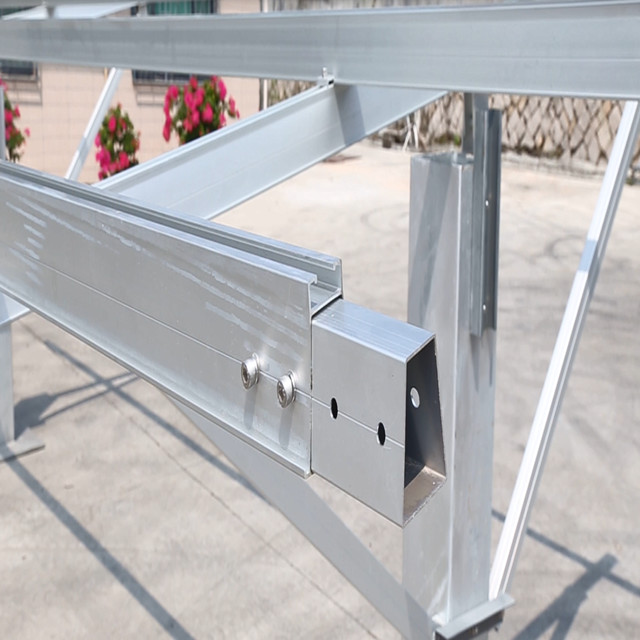

Single Pole Structure AL 6005 Solar Ground Mount System Images
